WPS (Router Button) Connection

  1. Select WPS (Push button method) and press OK button.

  2. Press OK button.

  3. Press and hold the WPS button on the wireless router.

    Note

    • For more on pressing the WPS button, see the wireless router manual.

  4. Press OK button within 2 minutes.

    WPS (Push button method) screen: Select OK

    If a different screen appears, see "Troubleshooting."

  5. When the following screen appears, press OK button.

    Completion screen (Connected to the wireless router.)

    If a different screen appears, see "Troubleshooting."

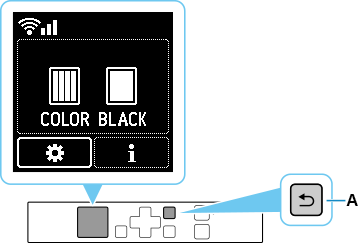

  6. Press the Back button (A) until the following HOME screen appears.

    The network connection setup is now complete.

    Once connection is complete, Wi-Fi ON icon appears at the lower left of the screen.

  7. Proceed with the settings according to your OS environment.
